EO/IR UAVs Manual/auto Tracking Gimbal With 10km Laser Range Finder
JH430 EO/IR gimbal is a 2-axis 4-frame high accuracy servo stabilized platform equipped with a 27× continuous zoom daylight camera, a 23mm -450mm cooled IR camera and a 10km laser range finder. A lift mechanism is configured for large UAVs to meet various installation demands. The optimal aerodynamic structure ensures the image stabilization at high speed flight. The sensible control keypad and sensitive operation meet all operation and control demands.
Features
- Daylight camera with 27× continuous zoom
- IR camera with 23mm-450mm continuous zoom
- 10km laser range finder
- Manual/auto tracking function
Technical Specification
| SYSTEM PARAMETER |
| Stabilization platform | 2-axis 4-frame |
| Range | Azimuth:360°continuous |
| Elevation:-110°～+20° |
| Max. angular speed | Azimuth:≥60°/s |
| Elevation:≥60°/s |
| Random error of angular report accuracy | ≤0.1° |
| Stabilization accuracy | ≤25μrad |
| IP grade | IP67 |
| External interface | Power supply:DC24～36V |
| Communication:Async RS422/RS232 |
| Video:HD-SDI/sync RS422/ network |
| IR CAMERA |
| Detector | HgCdTe FPA (cooled) |
| Resolution | 640×512 |
| Pixel size | 15μm×15μm |
| Spectral band | 3.7μm～4.8μm |
| Cooling type | Stirling cooler |
| Focal length | 23mm～450mm |
| FOV | 23.5°×18.9°～1.22°×0.98° |
| DAYLIGHT CAMERA |
| Sensor | colored CMOS |
| Resolution | 1920×1080 |
| Optical zoom | 27× |
| Focal length | 13mm～360mm |
| FOV | 25°×14°～1.1°×0.62° |
| LASER RANGE FINDER |
| Wavelength | 1064nm |
| Divergence angle | 10mrad |
| Range | 300m～10km(for 2.3m×2.3m targets at visibility of 23km) |
| Accuracy | ≤±5m |
| PHYSICAL PARAMETER |
| Dimension | Φ430mm×640mm |
| Weight | ≤45kg |
| Color | airplane gray |
| ENVIRONMENTAL PARAMETER |
| Operating temperature | ﹣40℃～﹢60℃ |
| Storage temperature | ﹣50℃～﹢70℃ |
Company Profile
Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.
Customer Distribution
Service Process
Products

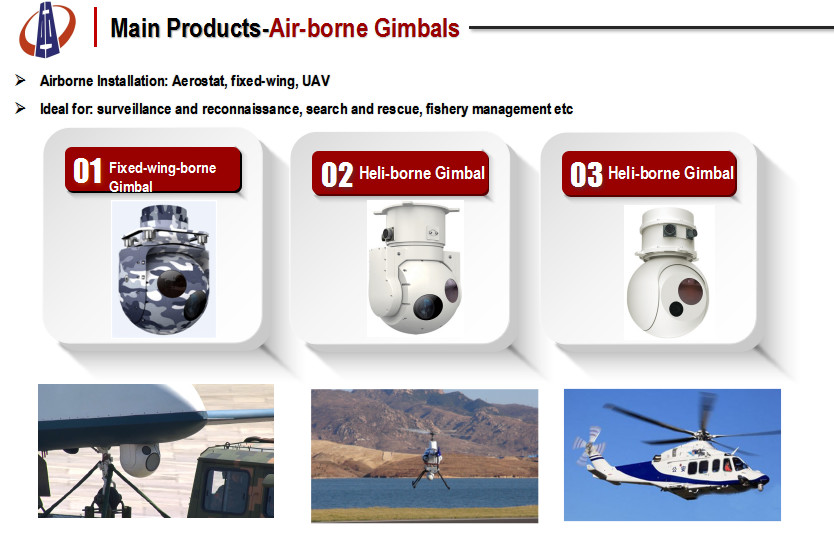

Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.
